Chapter 13
GAS SAFETY

Contents

Approved by Kurt Ettinger
Revised 4/17

NOTE:
flagflag . . . . . Denotes a new section.
open flag . . . . . . . . Denotes the beginning of changed text within a section.
close flag . . . . . . . . Denotes the end of changed text within a section.

____________________

13.1 Policy

Berkeley Lab’s Gas Safety Program identifies precautions to prevent injuries, property damage, and disruption to operations caused by leaks of compressed gas and over-pressurizations. Precautions prevent the following types of accidents and injuries:

13.2 Scope

This program applies to the storage, use, and handling of gases in pressurized portable containers (e.g. compressed gas cylinders) and gas systems. The primary focus of this program is on single-gas uses and systems.

Additional requirements apply to:

13.3 Applicability

All Berkeley Lab employees, affiliates, and subcontractors who order, handle, or dispose of gases.

13.4 Exceptions

None

13.5 Roles and Responsibilities

Role

Responsibilities

Principal Investigator/Supervisor

The principal investigator or gas-use supervisor has primary responsibility for gas-use safety and implementation of all provisions of this chapter, including:

  • Work Planning and Control (WPC)
  • Safety Notes
  • Training
  • Equipment and controls implementation, maintenance, and inspections
  • Request for gas pre-purchase approval, when required
Self-assessment inspections

EHS — Research Support Team

Provides an Environment, Health, and Safety (EHS) hazard evaluation and code compliance coordination role related to fire, life-safety, pressure, health, and oxygen-deficiency gas hazards that includes:

  • Helping the gas user evaluate hazards and determine appropriate controls
  • Evaluating purchases of gases that require pre-purchase approval (e.g. toxic gases), and approving as appropriate
  • Reviewing new gas-use controls and designs, such as for WPC reviews, facilities projects
  • Determining health-hazard classifications; required engineering controls and/or physiological warning property ratings to previously unclassified health-hazard gases, dilute gases, and gas mixtures
  • Periodically auditing gas use(s) as one component of the EHS WPC activity reviews
  • Administering and maintaining the Gas Safety program and the Pressure System Safety program
  • Monitoring gas cabinet and fume hood functionality on an annual basis
EHS- Waste Management
  • Provides guidance and assists in the disposal of unwanted hazardous gases owned by LBNL that cannot be returned to the vendor.
Facilities Department — Maintenance & Operations
  • Assists in the selection, installation, and startup of maintainable and reliable safety systems that support gas use operations
  • Assists with or assembles gas systems and provides, inspects, repairs, and/or rebuilds certain commonly used gas system components in response to a work request
  • Manages gas detector maintenance services for detector users, per work requests
Procurement Department
  • Manages gas supplier subcontracts for all compressed or liquefied gases.
  • Screens gas purchase requests and ensure that requests that require pre-purchase approval are not ordered before the approval process is completed
Protective Services - Fire Department
  • Monitors and responds to alarms transmitted via the fire alarm system or emergency telephone number system
Protective Services - Fire Protection
  • Evaluates welding, cutting, and other hot work operations and issues hot work permits, as appropriate
  • Inspects facilities in accordance with Department of Energy (DOE) Order 420.1c and other applicable fire prevention codes
  • Provides formal interpretation of the California Fire Code (CFC) and applicable National Fire Protection Association (NFPA) codes and standards



13.6 Acronyms and Definitions

Term

Definition

CFC

California Fire Code

CMS Chemical Management System
Compressed gas

A materials or mixture of materials which:

      1. Is a gas at 68OF or less at 14.7 psia of pressure; and
      2. Has a boiling point of 68OF or less at 14.7 psia which is either non-liquefied or in solution –, except those gases which have no other health- or physical -hazard properties are not considered to be compressed until the pressure in the packaging exceeds 41 psia at 68OF

Control area

A space within a building where quantities of hazardous materials not exceeding the maximum allowable quantities per control area are stored, dispensed, used or handled. The space is bounded by not less than a one-hour fire-resistive assembly.

Corrosive gas

A gas that can cause visible destruction of, or irreversible alterations in, living tissue (e.g., skin, eyes, or respiratory system) by chemical action

DOT

U.S. Department of Transportation

Exhausted enclosure

An appliance or piece of equipment that consists of a top, a back, and two sides providing a means of containing, capturing, and exhausting gases, fumes, vapors and mists. Such enclosures include laboratory hoods, exhaust fume hoods, and similar appliances and equipment. Rooms or areas provided with general ventilation are not exhausted enclosures.

EFV

Excess Flow Valve

Flammable gas

A material which is a gas at 68O Fahrenheit (F) or less and 14.7 pounds per square inch, actual (psia) of pressure which:

        1. Is ignitable at 14.7 psia when in a mixture of 13 percent or less by volume with air; or
        2. Has a flammability range at 14.7 psia with air of at least 12 percent, regardless of the lower limit

Gas cabinet

A fully enclosed, ventilated, noncombustible enclosure used to provide an isolated environment for compressed gas cylinders that are in storage or use. Doors and access ports for exchanging cylinders and accessing pressure-regulating controls are allowed to be included as part of the cabinet.

Hazardous gas

A gas that is included in one or more of the following hazard categories: corrosive, flammable, health hazard, oxidizer, pyrophoric, reactive, highly toxic, or toxic.

Hazardous-gas detection system

A fixed system used to detect the presence of hazardous gas at potentially unsafe levels

Health hazard (gas classification)

A classification that indicates statistically significant evidence that acute or chronic health effects are capable of occurring in a person exposed to this chemical. The term “health hazard” includes gases that are toxic, highly toxic, and corrosive. See Work Process D, Health-Hazard Gases.

Immediately Dangerous to Life and Health (IDLH)

The concentration of air-borne contaminants that poses a threat of death, immediate or delayed permanent adverse health effects, or effects that could prevent escape from such an environment. This contaminant concentration level is established by the National Institute of Occupational Safety and Health (NIOSH) based on both toxicity and flammability.

Liquefied gas

A liquid contained in a compressed gas cylinder that has a vapor pressure exceeding 276 kilopascals (KPa) at 38° Centigrade (C) (40 psi at 100°F)

Lower Flammability Limit (LFL)

The minimum concentration of vapor in air at which propagation of flame will occur in the presence of an ignition source. The LFL is sometimes referred to as the lower explosive limit (LEL).

Maximum Allowable Quantity (MAQ) The maximum amount of a hazardous material allowed to be stored or used within a control area inside a building or in an outdoor control area.

NFPA

National Fire Protection Association

NTP Normal temperature and pressure: 1 atmosphere (atm) and 20°C. (Compare with STP below.)

Oxidizing gas

A gas that can support and accelerate combustion of other materials more than air does

Oxygen deficiency

A condition that occurs when a breathable atmosphere contains less than 19.5% oxygen. (Normal air contains 20.9% oxygen.)

Permissible Exposure Limit (PEL) and Threshold Limit Value (TLV)

Airborne exposure limits established for particular chemicals by the Federal Occupational Safety and Health Administration (Fed/OSHA) and the American Conference of Governmental Industrial Hygienists (ACGIH), respectively. DOE requires that employee exposures not exceed PELs or TLVs.

Pyrophoric gases

Gases with an auto-ignition temperature in air at or below 54°C (130°F). Specific gases may not ignite in all circumstances or may explosively decompose.

RFO

Restricted Flow Orifice

Safety Note

A document that is a records of engineering calculations or tests on specific equipment. A Safety Note may also specify operational requirements addressed in a WPC Activity or in operating instructions. See Pressure System Safety.

STP

Standard temperature and pressure- 1 atm and 0°C (Compare with NTP, above.)

Time-Weighted Average (TWA), Short-Term Exposure Limit (STEL), and Ceiling (C) standards are summarized as follows:

Organizations and Standards

Work Exposure Duration

Fed/OSHA PEL-TWA and ACGIH TLV-TWA

8-hour shift and 40-hour week

Fed/OSHA PEL-STEL and ACGIH TLV-STEL

15 minutes

Fed/OSHA PEL-C and ACGIH TLV-C

Any point in time

13.7 Required Work Processes

Work Process A. Inert Gases, Oxidizing Gases and General Requirements
Work Process B. Flammable Gases
Work Process C. Pyrophoric Gases
Work Process D. Corrosive and Health-Hazard Gases

Work Process A. General Requirements

  1. Scope. The requirements in this work process apply to all compressed gases and compressed gas systems. This section also contains the specific requirements pertaining to inert and oxidizing gases. A flow chart of all work processes and gas types follows:

  1. Emergency Response
    1. When a gas leak that poses an immediate threat such as fire, explosion, or health hazard:
      1. If the leaking gas is flammable and it is safe to do so, turn ignition sources in the vicinity of the leak off.
      2. Evacuate the area immediately.
      3. Call 911
  2. Work Planning and Control
    1. The use of compressed gases must be authorized using the LBNL Work Planning Control (WPC) Activity Manager database.
    2. The Work Planning and Control website includes tools and information for documenting research work activities. The principal investigator / supervisor must:
      1. Ensure the work is properly authorized
      2. Ensure that workers working with compressed gases are authorized on appropriate work activities before work begins
  3. Training
    1. Personnel must complete the following Berkeley Lab courses and training in accordance with the hazards posed by their work activities:
      1. Pressure and Compressed Gas Safety (EHS0171) provides an overview of the safety issues and requirements for the use of pressure systems, and must be completed by anyone who works with compressed gas and pressure systems.
      2. Chemical Hygiene and Safety Course (EHS0348) provides information on the hazards and controls associated with chemicals that may be encountered in a research laboratory setting, and must be completed by personnel who handle or use hazardous gases.
      3. Specialized on-the-job training on the hazard and safety procedures for each hazardous gas-use operation must be provided by the supervisor, and must include a review of the related WPC Activity.
      4. Additional requirements apply to personnel who design or assemble pressure systems as described in the Pressure System Safety program.
  4. Procurement
    1. The following requirements apply when procuring compressed gases:
      1. Maximum Allowable Quantity (MAQ): To minimize risk, the fire code establishes limits on the MAQ of compressed gas that can be stored in a “control area,” which can be defined as an entire building, or a floor or section of a building. MAQs per control area are documented in the Fire Prevention and Protection program.
      2. Maximum Cylinder Size. Cylinders of flammable and oxidizing gases in excess of 250 standard cubic feet (SCF) at normal temperature and pressure (NTP) are not permitted for indoor use per NFPA 55, Compressed Gases and Cryogenic Fluids Code.
      3. EHS Approval: EHS approval must be in place before Procurement can process the purchase of certain types of gas. Refer to the Procurement Restricted Items list for specifics.
      4. Before purchasing gas in larger quantities than usual, or gas that poses a new physical or health hazards, consult with the Gas Safety program subject matter expert or Protective Services to determine if MAQs will be exceeded or if EHS approval is required
  5. Installation and Set Up
    1. Many safety considerations for installing and setting up a gas system are documented below, but additional requirements may apply as prescribed in the governing regulations for a particular gas type. Gas systems that pose a pressure hazard must also comply with requirements documented in the Pressure System Safety program.
    2. For assistance with installing, inspecting, repairing and maintaining regulators and related gas system components, contact Facilities (ext 6274) or place a work order request through the Facilities Work Request Center.
    3. Minimum requirements for installation and set-up include:
      1. Safety Shower and Eyewash. An approved safety shower and eyewash must be maintained at locations where corrosive, eye-irritating, or skin/eye-toxic gases are stored or used. The shower or eyewash station must be within 10 seconds or 30 meters (m) (100 feet [ft]), whichever is less.
      2. Pipe and Component Compatibility and Ratings. Gas pipes, valves, fittings, regulators, and related components must be constructed of materials compatible with the gases to be contained and must be rated for the service. More information on tubing and fittings can be found in Work Process B, Work Process C, Work Process D, and Appendix C, Gas System Components Information. Compatibility charts for certain gas are provided by the following gas providers:
        1. Advanced Specialty Gas
        2. Air Liquide Specialty Gases
        3. Scott Specialty Gases
    4. Pipe Labeling. Each gas line outside of the source gas cabinet or lab hood that contains compressed gas must be labeled at least every 6 m (20 ft), at every change in direction, at critical shutoff valves, and as needed to provide clear identification. Labels must be durable and display the gas name and direction of gas flow. Exception: Piping that may contain more than one type of gas at various times must have signs or labels posted as needed for clear identification and warning at the manifold, along the piping, and at points of use.
    5. Pressure Regulator. Gas system pressure must be reduced through a regulator mounted to the cylinder valve outlet or to a manifold. A regulator of the approved type and design for the specific gas and cylinder combination must be used.
      1. Inspect the regulator before installation to ensure that it is the correct one for the particular application and that it is in safe working condition.
      2. Oxygen regulators must be labeled for oxygen service, and used regulators reapplied to oxygen service must be degreased.
      3. Note: a regulator is not a safety device and could fail, even at first use. It is essential that the regulator and gas system components are protected by some form of pressure relief device such as a pressure relief valve or rupture disk. See the Pressure System Safety program for more information.
      4. Regulators must never be altered or repaired by unauthorized personnel.
      5. More information on regulators can be found in Appendix C, Gas System Components Information.
    6. Backflow Prevention.
      1. Backflow prevention devices such as check valves must be provided when the backflow of materials could create a hazardous condition.
      2. Flashback arrestors are required when fuel and oxidizing gases are connected to a torch or other equipment where gases mix. Check valves will not stop a flashback.
    7. Shutoff Valves. Required emergency shutoff valves must be:
      1. Easily accessible, the valve location must be identified by means of a sign, and the valve must be labeled with the gas name or function. Exception: Gas cylinder valves do not need to be identified.
      2. An emergency gas shutoff valve must be located at the process equipment that uses hazardous gas when this equipment is in a different room than the source gas cylinder.
    8. Accidental Flow Control. Excess flow valves (EFVs) or restrictive flow orifices (RFOs) are recommended and may be required by this policy or by EHS to control accidental gas leaks or flows that could cause a fire, explosion, or health risk. See Work Process D for more detailed RFO requirements.
    9. Purge Gas.
      1. When an inert gas source is used to purge hazardous gas from gas lines that use gases of different hazard categories, a separate purge supply must be used for each category of hazardous gas.
      2. It is preferable to have a separate purge cylinder for each hazardous gas cylinder in use.
      3. Backflow prevention devices must be installed between the purge gas supply and the hazardous gas system.
      4. House nitrogen cannot be used as a purge gas.
    10. Vacuum Pumps. The type of vacuum-pump oil to be used with gases and chemicals must be analyzed for its compatibility with those gases and chemicals. Hydrocarbon oil should not be used with an oxidizer or with pyrophoric gases. Inert oils should be used instead. Pumps must have a pressure relief or shutdown device that prevents the pump from bursting if a line becomes plugged. Oil drip pans should be placed under all pump and oil filter assemblies. For more information see the Pressure System Safety program.
    11. Ventilation.
      1. General Ventilation Requirements
        1. The exhaust ventilation system for a hazardous gas area and hazardous gas use must be installed in accordance with the California Fire Code and California Mechanical Code.
        2. General area mechanical ventilation for hazardous gas stored and used indoors must be 0.005 cubic meters per second (m3/s) per square meter (one cubic feet per minute [cfm] per square foot) of floor area or greater.
        3. The ventilation system must operate continuously.
      2. Exhausted Enclosures – General Enclosure Requirements
        1. A gas cabinet or fume hood must be used when exhausted enclosures are required for the storage or use of a hazardous gas cylinder.
        2. Each fume hood or gas cabinet that contains one or more hazardous-gas cylinders must be posted with a sign that identifies the name of the gases and their hazard categories.
      3. Exhausted enclosures for hazardous gases must be constructed of noncombustible materials.
    12. Gas Cabinets.
      1. Gas cabinets must meet current industry and regulatory specifications, which typically include the following:
        1. Constructed of not less than 12 gauge (2.5 mm or 0.097 in) steel and coated to prevent corrosion
        2. Provided with a self-closing and self-latching cylinder access door
        3. Provided with a noncombustible safety window (6.4 mm or 0.25 in) wire-reinforced safety glass
        4. Provided with self-closing access port(s) or windows of sufficient size that allow hand access to equipment controls
        5. Provided with makeup air inlets that allow air circulation throughout the cabinet when the access port(s) or windows are closed
        6. Provided with an approved fire sprinkler
        7. Limited to a maximum of three gas cylinders
        8. Provided with exhaust ventilation that ensures the cabinet is at negative pressure in relation to the surrounding area
      2. An average velocity of air flow at the face of open access ports or windows of 1 to 1.5 m/s (200 to 300 fpm) with a minimum of 0.75 m/s (150 fpm) at any measurement point.
    13.  Exhaust Duct Systems and Connections.
      1. Exhaust systems must be constructed to current building code, fire code, and ACGIH Industrial Ventilation Manual requirements. For example:
        1. Exhaust ducts for hazardous gases must be constructed of noncombustible materials, constructed of compatible materials (or have interior coatings), and must be sealed and seismically braced.
        2. Exhaust ducts must maintain negative pressure and required flow rates.
      2. The following purge and exhaust systems ancillary to the use of hazardous gas must be connected to the exhaust duct system in an approved manner:
        1. All lines or ducts carrying purged hazardous gas emissions (e.g., pipe vents) or exhausted hazardous gas emissions (e.g., vacuum pump lines)
        2. Exhausted enclosures, gas cabinets, and lab hoods.
    14. Ventilation Monitoring.
      1. All exhausted enclosures must have a ventilation monitor that measures duct or enclosure exhaust performance and displays a quantitative readout easily visible to the gas user (e.g., magnehelic or better).
      2. When ventilation monitoring is required, the monitor must have local audible and visual alarms that activate when the exhaust flow decreases to 70% to 80% of the required air flow.
    15. Gas Detection
      1. General Detection Requirements
        1. Gas-detection controls must be used when highly toxic, toxic, flammable, or oxygen-deficiency leak risks cannot be adequately controlled by other means or when required by codes.
        2. Gas-detection controls must not be used in place of proper primary controls (e.g., approved gas lines) and secondary controls (e.g., ventilation and ventilation monitoring). Ventilation monitoring interlocked with automatic gas shutdown at the gas source may also be required.
        3. Requirements for flammable and health-hazard gas-detection procedures are presented Work Process B, Flammable Gases, and Work Process D, Corrosive and Health-Hazard Gases. Requirements for oxygen deficiency detection procedures are presented below. When gas detection procedures are required, Appendix A is used to determine gas detector system maintenance, selection, installation. Appendix A also includes auditing and other requirements for gas detection systems.
      2. Oxygen-Deficiency Detection
        1. Oxygen deficiency detection controls may be needed to detect a lack of breathable air in a space that could be occupied. Oxygen deficiency may result when there is inadequate ventilation and/or displacement of air by a gas or process byproduct. Examples at LBNL include the use of house nitrogen lines in small or inadequately vented spaces or in spaces where oxygen is purposely removed for research purposes. Guidelines for oxygen deficiency detection must be developed on a case-specific and hazard basis through a WPC review or risk assessment conducted using oxygen deficiency hazard calculations. Oxygen-deficiency detectors are generally not recommended when engineering controls (e.g., ventilation) can be used to control the hazard.
        2. A work space that may be oxygen deficient and have limited personnel access and egress meets the definition of a “confined space” and must meet all the requirements of the Confined Spaces program. Portable oxygen detectors – in place of fixed-in-place detectors – are usually sufficient for confined spaces.
    16. Electrical Systems
      1. Electrical equipment and wiring must be installed in accordance with the National Electrical Code. Gas piping and containers must not be designed or placed where they can become part of the electrical circuit or used for grounding.
      2. Required ventilation and control systems must be connected to a standby or emergency source of power to automatically supply electricity in the event of loss of power from the primary source. Exception: when standby power is not available in the building and the gas quantities are below the amounts allowed by the California Fire Code (CFC). Emergency power is required for CFC highly toxic gases in quantities greater than the MAQ.
      3. When standby or emergency power is not provided for a hazardous gas system that provides primary control against the development of a hazardous condition, loss of system power must activate automatic gas shutoff. For example: an exhaust duct blower that provides exhaust ventilation for flammable or health-hazard gas process effluents that continue to be generated after power is lost.
    17. Gas Flow System
      1. Pressure Safety. Compressed gas systems must be designed and installed in accordance with the requirements of the Pressure System Safety program except for the following:
        1. Inert-gas systems to 1 megapascal (MPa) gauge (150 psig) with a total stored energy of not more than 100 kilojoules (kJ) (75,000 ft-lb)
        2. Simple flow system with a standard pressure regulator, with pressure-relief devices set to no more than 1 MPa gauge (150 psig) and with no components rated for a working pressure less than 1 MPa gauge
      2. Under no circumstances may any gas be used without a standard pressure regulator that is rated for the service and compatible with the gas.
      3. Depending on the pressure rating of the system, a Safety Note may be required. Systems must be constructed in accordance with the requirements of the Pressure System Safety program.
      4. All pressurized hazardous gas system connections must be checked for leaks on new gas systems and after reconnection of any fitting.
  6. Storage, Use and Handling
    1. Many of the following items should be addressed during installation and set-up. Regardless, storage, use and handling of compressed gases must meet the following requirements:
      1. Chemical Management System. To control quantities of hazardous gases at specific locations, an inventory of hazardous gases must be maintained for each location. This inventory will itemize gas quantities and identify storage locations. Berkeley Lab’s Chemical Management System (CMS) must be used to manage and track compressed gas inventories. The inventory list of gases should be included in the WPC, when appropriate. Typical information on the list includes each gas name and hazard category, number of cylinders, cylinder size(s), total cylinder volume(s) at normal temperature and pressure (NTP) in cubic meters (m3) and cubic feet (cf), and maximum allowable quantities by hazard category. Storage locations for each gas must be noted.
      2. Hazardous Materials Separation.  Hazardous gases must be separated from incompatible hazardous materials by distance (as noted in Table 13.1 below), barriers, or cabinets.  When a gas is classified in more than one category, all compatibilities must be considered and the most stringent separation used. Non-hazardous gases (e.g., inerts) may be stored along with gases in any hazard category. When gas cylinders must be separated into hazard categories, each category area will be posted with a hazard category sign. Incompatible materials must never be stored in the same gas cabinet or exhausted enclosure. See Appendix B for hazard categories of specific health hazard gases

Table 13.1 Gas Cylinder Separation by Hazard

Gas Hazard Category a

Nonflammable

Corrosive

Oxidizing

Flammable

Pyrophoric

Toxic

6 m (20 ft)b

6 m (20 ft)b

6 m (20 ft)b

Pyrophoric

6 m (20 ft)b

6 m (20 ft)b



Flammable

6 m (20 ft)b





Oxidizing







Corrosive







Footnotes:
aA dash (—) indicates that cylinders with these hazard ratings may be stored adjacent to each other.
bDistances can be reduced without limit when hazardous materials are: (1) separated by a one-half-hour-rated noncombustible barrier (e.g., 2.5 mm or 12 gauge steel) that extends not less than 50 cm (18 in) above and to the sides of the gas cylinder; or (2) stored in separate approved hazardous materials storage cabinets or gas cabinets.

      1. Cylinder Securing. Gas cylinders must be secured to prevent falling due to accidental contact, vibration, or earthquake in one of the following ways:
        1. By a noncombustible, two-point restraint system (e.g. chains) that secures the cylinder at the top and bottom one-third portions. Exception: A cylinder less than 1 m (3 ft) tall requires only one restraining point. Note: LBNL follows the UC Lab Design Guide (2nd Edition), which specifies non-combustible restraints for cylinders. While readily available webbing-style strapping systems may appear to be a good selection for securing cylinders, many of these systems are constructed of combustible materials (e.g. nylon) and would not meet the non-combustible requirements.
        2. By a noncombustible rack, framework, cabinet, approved strapping device, secured cylinder cart, or other assembly that prevents the cylinder from falling.
      2. Cylinder Position. Gas cylinders must be stored in a “valve end up” upright position, including conditions in which the cylinder is inclined as much as 45 degrees from the vertical. Exceptions include cylinders designed for use in a horizontal position and cylinders with non-liquefied compressed gas that have a water volume less than 5 Liters (0.18 cf or 1.3 gal).
      3. Cylinder Valves, Caps, and Plugs.
        1. Gas cylinders designed to have valve-protection caps and valve-outlet caps and plugs must have these devices in place. Exceptions: when the cylinder is in use, connected for use, or being serviced.
        2. Gas cylinder valves must have a manual shutoff valve, hand wheel, spindle key, or other approved control handle on the valve stem while the cylinder is in use. Cylinder valves should be opened slowly, and should be kept closed when gas is not in use. A fully open “tight” valve may be mistakenly assumed to be closed, so when opening a valve, turn it back a quarter turn from fully open to prevent this phenomena.
        3. A quick connect shall not be used in place of a shutoff valve. Each point of use shall have an accessible manual shutoff valve.
      4. Cylinder Changing.
        1. Two people must be present during hazardous gas purge and cylinder change procedures.
        2. Reconnected gas fittings must be checked for leaks using a leak-detection fluid or other approved method.
      5. Exits and Lighting.
        1. Storage or use of gas cylinders in exit corridors are prohibited.
        2. Hazardous gases must be located away from exit routes and doors, unless located in gas cabinets.
        3. Emergency lighting requirements can be found in the Fire Prevention and Protection program.
      6. Area Signs. Every entrance to an area where hazardous gases are used or stored must be posted with visible and durable gas hazard identification signs. Hazardous-gas exterior storage and use areas must have signs that prohibit smoking within 8 m (25 ft).
      7. Storage/Use. Cylinders that are not necessary for current laboratory requirements shall be stored outside the laboratory unit in accordance with NFPA 45, with the exception of nominal 0.5 kg (1 lb) propane cylinders made for consumer use. A compressed gas cylinder is considered to be “in use” if it is:
        1. Connected through a regulator to deliver gas to a laboratory operation, or
        2. Connected to a manifold being used to deliver gas to a laboratory operation, or
        3. A single cylinder secured alongside the cylinder described in 1 and 2 above as the reserve cylinder. Note: There is a maximum of one reserve cylinder for each cylinder connected for use as described in 1 and 2 above.
      8. Liquefied Gases and Eductor Tubes. Compressed liquefied gases must be used and stored in an upright position. Most compressed liquefied gas cylinders are set up to dispense the gaseous portion of the product from the cylinder. Rarely, an Eductor tube (aka: Dip tube) is available in the cylinder to extract the pressurized liquid product (e.g. carbon dioxide). When using a compressed liquefied gas, look for labeling that indicates the cylinder contains an Eductor tube, and will state – often in small lettering –  “Caution Liquid Delivery.” This cylinder is equipped with an eductor tube. Do not connect to the liquid delivery valve if you require gas delivery.” Note: These cylinders (carbon dioxide) have been mistakenly ordered and set up for use at LBNL since they do not appear different from a standard cylinder setup for dispensing gaseous product. Eductor tubes are more commonly used for dispensing of cryogenic liquids. Safety procedures for cryogenic liquid use are in Chapter 29, Safe Handling of Cryogenic Liquids.
      9. Unauthorized Cylinder Modification or Use.
        1. All labels, markings, and tags provided on the gas cylinder by the manufacturer must be maintained in good condition.
        2. Gas cylinder parts must not be modified, tampered with, obstructed, removed, repaired, or painted by the gas user.
  1. Outdoor Locations
    1. Exterior Locations.  Exterior storage locations must be evaluated to determine the need for a weather protection canopy. A protection canopy would be required when the weather and/or other elements may adversely affect the integrity of the cylinders, cylinder components, or other equipment. If a canopy is erected it must be non-combustible.
      1. All outdoor storage areas must be protected from vehicle damage.
      2. Cylinders must not be placed on unpaved ground or on surfaces where water can accumulate.
      3. Storage and use of compressed gases shall be located not less than 50 ft (15 m) from air intakes.
      4. Outdoor storage areas must be inspected on a regularly scheduled basis by the area user(s).
      5. Combustible Materials Separation. Outdoor cylinder storage and use located in designated control areas must be kept clear of all weeds, grass, brush, and trash, as well as any other combustible materials, for a minimum distance of 7.5 m (25 ft) from all cylinders.  Exception: An approved noncombustible barrier may be used instead. (See Hazardous Materials Separation, above).
      6. Cylinder Temperature Control. Compressed gas cylinders that have not been designed for use under elevated temperature conditions shall not be exposed to direct sunlight outdoors where ambient temperatures exceed 125°F (52°C).
  2. Transportation
    1. Use only standard DOT cylinders for transporting compressed gas. (A DOT cylinder is one that is designed, fabricated, tested, and marked [stamped] in accordance with regulations of DOT, Transport Canada [TC] Transportation of Dangerous Goods Regulations, or the ASME Boiler and Pressure Vessel Code, “Rules for the Construction of Unfired Pressure Vessels,” Section VIII.)
    2. Transport within a building or between adjoining buildings. Personnel trained to use compressed gases may use a standard cylinder cart to transport cylinders.
      1. Cylinders weighing 11 kg (25 lb) or less may be hand-carried, but it is preferable to use a cylinder cart.
      2. Multiple cylinders or cylinders heavier than 200 pounds (e.g. 6K cylinders) – get assistance from other trained personnel.
      3. Valve-protection caps and plugs must be in place during movement of cylinders. Lecture bottles and other cylinders without protective caps must be transported in standard shipping crates or an equivalent container.
      4. For more information on the safe handling of gas cylinders, see this video excerpt from the EHS Pressure and Compressed Gas Safety training (EHS0171).
    3. Transport between non-adjoining buildings. Berkeley Lab Facilities Transportation or approved Berkeley Lab gas supply subcontractors are authorized to move larger quantities these distances. Staff is authorized to personally move (self-transport) small quantities of most compressed gases by vehicle. See the EHS Transporting Hazardous Materials webpage for more information on authorized cylinders and procedures for self-transport.
  3. Cylinder Return or Disposal
    1. Empty Cylinders.
      1. Leave residual pressure (i.e., typically 200 kPa or 30 psi) in the cylinder to prevent contamination of contents, and handle cylinders considered to be empty with the same precautions as cylinders filled with gas (since they should still contain residual gas and pressure).
      2. Empty gas cylinders must be labeled “Empty.”
    2. Cylinder Return or Disposal.
      1. For guidance on returning rental cylinders contact your Division Safety Coordinator or the Gas Program subject matter expert (SME).
      2. For disposal of unwanted LBNL owned cylinders contact your Division Safety Coordinator, the Gas Program SME or enter the compressed gas cylinder(s) into the lab Non-Routine Cylinder Removal Request form.

Work Process B. Flammable Gases

  1. Scope
    1. In addition to the requirements in Work Process A – which apply to all compressed and hazardous gases – compressed and liquefied flammable gas must comply with the following codes and standards specific to their storage and use:
      1. CFC (current edition)
      2. NFPA 45, Standard on Fire Protection for Laboratories Using Chemicals (current edition)
      3. NFPA 55, Compressed Gases and Cryogenic Fluids Code (current edition)
      4. NFPA 50A, Standard for Gaseous Hydrogen Systems at Consumer Sites (current edition)
    2. For any design and construction requirements not specifically covered in this Work Process on the following topics, contact the indicated Berkeley Lab support team (in parentheses):
      1. Storage and use of flammable gas in quantities greater than the maximum allowable quantity, as specified in the codes and standards listed in the Fire Prevention and Protection Program, Appendix A. (Protective Services, Fire Protection).
      2. Welding and cutting (Protective Services, Fire Protection – contact for hot work permit). Requirements are specified in the following codes and standards:
        1. NFPA 51, Standard for the Design and Installation of Oxygen-Fuel Gas Systems for Welding, Cutting, and Allied Processes
        2. NFPA 51B, Standard for Fire Prevention During Welding, Cutting and Other Hot Work
        3. CFC, Chapter 35, Welding and Other Hot Work
      3. Dispensing of compressed liquefied flammable gas (Facilities or Engineering)
      4. Procurement and use of a hydrogen or other gas generating device (EHS Research Support Team)
  2. Piping and Components.
    1. Piping and related gas-flow components must be of compatible and noncombustible design and construction. Stainless steel pipe and fittings are recommended. Only compatible metal tubing shall be allowed for use with flammable or pyrophoric gases.
    2. If compatibility or contamination is of concern, non-metallic tubing may be used if it is contained within metallic tubing and if this use and configuration has been approved by the EHS Research Support Team and the Protective Services Fire Protection team.
  3. Gas Cylinder Storage and Use.
    1. Interior storage and use
      1. Storage and use rooms must be of noncombustible construction.
      2. Fire codes restrict the total quantity of hazardous materials (e.g. flammable gases) allowed in a Fire Control Area. Fire Control Areas at LBL are generally categorized per section of floor, per floor, or per building, and it is important to understand applicable limits and properly manage and use flammable gases (and other hazardous materials) accordingly.
      3. More information about how Fire Control Areas are set up in your building may be obtained by contacting the Fire Marshal in Protective Services.
      4. Single cylinders of flammable (and oxidizing) gas: the Fire Code states that no single cylinders that contain flammable or oxidizing gas with content greater than 250 cf are allowed for storage or use indoors.
    2. Exterior storage and use
      1. Cylinders must not be located under a window or within 5 m (20 ft) of smoking areas, open flames, or other ignition sources. Signs that prohibit smoking within 8 m (25 ft) of the storage or use area must be posted.
      2. Exterior locations must have a minimum of 25% of the perimeter open to the atmosphere and without walls.
    3. Cylinders of compressed gas in solution and liquefied gas must be stored and used in the upright position so that the pressure-relief valve is in direct contact with the vapor space of the cylinder, so that the gaseous product can be delivered.
  4. Ventilation
    1. The EHS Research Support Team will determine when leak-point ventilation is required:
      1. Leak-point ventilation requirements generally do not apply to manufactured process equipment that has undergone adequate product safety evaluation and is specifically designed to handle small quantities of flammable gas.
      2. Negative-pressure local exhaust or positive-pressure dilution ventilation is required at all potential leak points in the gas system where the ventilation rate is less than six air changes per hour. Six air changes per hour is approximately 0.005 cubic meters per second (m3/s) per square meter – (one cubic foot per minute [cfm] per square foot) – of floor area.
  5. Gas Detection
    1. Flammable-gas detection may be required where there is a possibility that a flammable-gas leak could be accidentally ignited in air.
    2. Flammable gas detection is required in the following situations:
      1. A hydrogen gas room (per CFC, Chapter 58)
      2. Vaults where compressed gases are generated, compressed, stored, or dispensed (per CFC, Chapter 53)
      3. Non-bulk hydrogen compressed gas systems above Maximum Allowable Quantity (MAQ) (per NFPA 55, Chapter 10, Gas Hydrogen Systems)
      4. Locations where ethylene oxide is dispensed (per NFPA 55, Chapter 14)
      5. Indoor locations where acetylene cylinders are charged (per NFPA 55, Chapter 15)
      6. Hydrogen equipment enclosures other than exhausted enclosures with gas volumes exceeding 1,000 scf (per NFPA 2, Chapter 7)
      7. High-Hazard Group Occupancies: The designation of a hazardous occupancy would be made during new construction or a major renovation.
        1. High-Hazard Group H-2 Occupancies: This occupancy includes buildings that pose a deflagration hazard or a hazard from accelerated burning, including flammable and combustible liquids or pyrophorics.
        2. High-Hazard Group H-5 Occupancies (Semiconductor fabrication): This occupancy includes buildings where semiconductor fabrication or comparable research is conducted involving hazardous production materials.
    3. When detection procedures for flammable gas are required, consult Appendix A to determine gas-detector system maintenance, audit, responsibility, selection, and installation requirements.
  6. Flammable Gas Mixtures

Table 13.2 lists the maximum concentration of hydrogen that is nonflammable when used as a component in inert gas mixtures commonly used at LBNL. For flammability ratings of other inert and flammable gas mixtures, contact the Gas Program SME or consult the Compressed Gas Association (CGA) P-23 Standard for Categorizing Gas Mixtures Containing Flammable and Non-flammable Components.

Table 13.2 Maximum Concentration (%) of a Flammable Component in a Non-flammable Binary Mixture


Flammable Component

Nonflammable

N2

CO2

He

Ar/Kr/Ne/Xe

Hydrogen

5.7

8.3

3.9

2.9

Operations that require a flammable and oxidizing gas mixture require review under the WPC process. If a fuel and oxidizer are to be mixed together, it is recommended to follow the precautions in CGA P-58, "Safe Preparation of Compressed Oxidant - Fuel Gas Mixtures in Cylinders."

Work Process C. Pyrophoric Gases

  1. Pyrophoric gases are listed in the procurement restricted items list. Approval prior to purchase is required, and all pyrophoric gas use must be authorized by the EHS SME and the Fire Marshal’s Office in Protective Services.
  2. In addition to the requirements in Work Process A – which includes general requirements for all compressed and hazardous gases – the following requirements and guidelines apply to the storage and use of pyrophoric gases.
    1. Additional requirements may apply to the storage and use of pyrophoric gas in quantities greater than 0.3 m3 (10 cf) for gas not in a gas cabinet and 0.6 m3 (20 cf) for gas in a gas cabinet. Further additional requirements apply for storage and use of pyrophoric gases that are also highly toxic gases.
    2. See Work Process DHealth-Hazard Gases, below for information on requirements for pyrophoric gases that are also health-hazard gases regarding gas purchase approval, cylinder delivery, cylinder return, and piping and component construction.
    3. Pyrophoric gases include diborane, phosphine, and silane. Diborane and phosphine are both pyrophoric and CFC Highly Toxic (NFPA Health Hazard Class 4) gases, and therefore require both pyrophoric and toxic (i.e., health hazard) gas safety controls. Silane is an NFPA Health Hazard Class 2 gas, but its primary hazard is pyrophoricity.
  1. Gas Storage and Use
    1. Locations, Barriers, and Cabinets
      1. Pyrophoric gases must be stored and used in gas cabinets or exhausted enclosures.
        1. Pyrophoric gas cylinders greater than 10 scf must be stored and used in a gas cabinet.
        2. For pyrophoric gases that are also toxic or highly toxic, a gas cabinet must be used, regardless of the size of the cylinder.
      2. Silane gas cylinders should be stored and used at exterior locations outside when possible. Whenever silane is being used outside of a gas cabinet, each silane cylinder must be separated from other hazardous gas cylinders by a non-combustible barrier with a material thickness of 6 millimeters (0.25 inches) and a width and height that extends at least 18 inches in front and above the cylinder. A Silane cylinder stored or used in an exterior location must be located in a shelter or bunker, provided with a chain-link fence to restrict entry and reduce the impact of an explosion at the location perimeter. The shelter must be separated from nearby buildings according to CGA G-13 requirements.
      3. Pyrophoric gases with an NFPA health-hazard classification of 3 or 4 must also have threaded, welded, or flanged connections throughout, except where connections are located within an exhausted enclosure. Swage-lock®-type connections are not permitted for any NFPA 704 health hazard 3 or 4 gases where the piping is located outside an exhausted enclosure.
      4. Only single-cylinder gas cabinets may be used for pyrophoric gases.
      5. Pyrophoric gas cylinders located in a gas cabinet must have mechanical ventilation at a minimum rate of 1 m/s (200 fpm) air velocity across the cylinder valve and gas fittings with the cabinet access port(s) closed.
    2. Gas Flow Controls
      1. A pyrophoric gas system at any pressure requires a Safety Note.
      2. A remote manual shutdown device for pyrophoric gas flow must be provided outside each gas cabinet or near each gas panel. A dispensing area must have an emergency shutdown mechanism for all gases that can be operated at a minimum distance of 5 m (15 ft) from the dispensing area. The emergency shutdown mechanism may be an accessible manual emergency shutoff valve or a remotely activated emergency shutoff valve. All emergency shutdown mechanisms must be marked with a sign.
      3. A pyrophoric gas flow, purge, and exhaust system must have redundant controls that prevent pyrophoric gas from igniting or exploding. These controls may include excess flow valves, restrictive flow orifices, mass flow controller sizing, process bypass line elimination or control, vacuum-pump inert-gas purging, dilution of process effluent with inert gas and ventilation, controlled combustion of process effluent, ventilation monitoring, and automatic gas shutdown.
      4. Piping and piping components must be compatible with the gas or gases in use (For details, see Work Process A, 6).
      5. For gas systems operated at a pressure greater than 15 psi, excess flow control or an emergency shutoff controlled by an approved leak detection system must be provided.

Work Process D. Corrosive and Health-Hazard Gases

  1. This section provides the requirements that apply to the storage use of corrosive and health-hazard gases, in addition to the general requirements that apply to all compressed and hazardous gases provided in Work Process A. See also Appendix D, Additional Information: Mixed Gases, Toxic Gases.
  2. Gas Health-Hazard Classification. Health-hazard gases, for the purposes of this chapter, include gases that at lower concentrations may cause significant acute or chronic toxic health effects including poisoning, and/or corrosion, irritation, and disease in human tissue.
    1. Acute Health Hazards. Table 13.2 presents standard CFC and NFPA acute-health-hazard gas classifications and shows each category’s relationship to lethal concentration values. These gas classifications must be used to determine which controls in this section are required for each gas use.
    2. Chronic Health Hazards. In contrast to acute-health-hazard gases, chronic-health-hazard gases can be pure or mixed chemicals under pressure in gas cylinders that have significant longer-term health hazards.
      1. Examples include OSHA Select Carcinogens http://www.osha.gov/SLTC/carcinogens/index.html).
      2. Gases that are only present chronic health hazards: the EHS Research Support Team will assign a health-hazard classification and set of engineering controls based on the specific gas and its use.

Table 13.2 Health-Hazard Gas Classifications

Pure Gas LC50 (ppm)

Zero to
200

Greater than 200 to 1000

Greater than 1000 to 2000

Greater than 2000 to 3000

Greater than 3000 to 5000

CFC Toxic Gas Classesa

Highly Toxicc

Toxic

N/A

NFPA Health Hazard Classesb

4

3

2

Footnotes:
a CFC Highly Toxic and Toxic Gases: CFC Highly Toxic gases have a median lethal concentration (one-hour rate LC50) in air of 200 parts per million (ppm) by volume or less of gas. CFC Toxic gases have a LC50 greater than 200 ppm and less than or equal to 2000 ppm
b NFPA Class 4, 3, and 2 Health Hazard Gases: NFPA Class 4 gases have a LC50 for acute inhalation toxicity that is less than or equal to 1000 ppm. NFPA Class 3 gases have a LC50 greater than 1000 ppm, but less than or equal to 3000 ppm. NFPA Class 2 gases have a LC50 greater than 3000 ppm, but less than or equal to 5000 ppm.
c Excimer Gases: Mixtures of Excimer gases might not warrant classification as Highly Toxic. While this system is basically simple in application, any hazard evaluation that is required for precise categorization of this type of material must be performed by experienced, technically competent persons, including but not limited to the EHS Subject Matter Expert. Further guidance can be found in Appendix D, Additional Information for Mixed Gases and Toxic Gases.

    1. Specific Gas InformationThe EHS Research Support Team will assign health-hazard classifications and engineering controls to previously unclassified gases, dilute gases, and gas mixtures. For additional information see Appendix B for a list of specific health-hazard gases and their corresponding CFC and NFPA classifications, and Appendix D, Additional Information: Mixed Gases, Toxic Gases.
  1. Small Gas Concentrations and Quantities.
    1. The required controls in this health-hazard gases section only apply to concentrations and quantities of gas that are sufficient to cause a gas-leak health hazard. A hazard exists at all potential leak points where a worst-case gas release will result in a small cloud of gas that is at or above the Ceiling Limit or Short-Term Exposure Limit (STEL) (or the Time-Weighted Average [TWA] if no Ceiling Limit or STEL is available).
    2. A leak health hazard exists if the concentration of gas inside the gas source (e.g., cylinder or gas line) is at or above the Ceiling Limit or STEL (or the TWA, if no Ceiling Limit or STEL is available). Exception: when a documented gas-release hazard evaluation shows that a leak hazard does not exist.
    3. The EHS Research Support Team will establish evaluation criteria as needed, review all leak-hazard evaluations, and approve evaluations that meet the requirements. For further guidance, see Appendix D, Additional Information for Mixed Gases, Toxic Gases.
  2. Gas Purchase Approval
    1. Berkeley Lab Procurement will send all purchase requisitions for NFPA Health Hazard Classes 3 and 4 gases (and Class 2 gases with poor physiological warning properties), and pyrophoric gases to the EHS Subject Matter Expert for approval before purchase, and will not process the requisition until EHS approval is obtained.
  3. Gas Delivery and Return
    1. Delivery and pickup of gas will be scheduled directly with and handled directly by a person designated by the gas user.
    2. The vendor must deliver gas directly to the gas user and the gas cylinders must be placed in an approved exhausted enclosure.
    3. Gas cylinder valves must be checked for leaks by the PI, Project lead, or other designated person before removal from the exhausted enclosure (e.g. prior to returning it to the vendor or prior to disposal, see Work Process A, 10)).
  4. Gas Flow System A gas flow system that handles NFPA Health Hazard Classes 2, 3, and 4 gases may require a Safety Note and must be designed and constructed in accordance with the requirements of Chapter 7, Pressure System Safety.
  5. Ventilation
    1. Area VentilationArea ventilation must be 0.005 m3/s per square meter (one cfm per square foot) of floor area or greater and must be maintained at negative pressure relative to adjacent corridors and non-laboratory or non-gas-use areas.
    2. General Local Exhaust Requirements. NFPA 704 Health-Hazard Classes 3 and 4 gases, NFPA Health–Hazard Class 2 gases with poor physiological warning properties, CFC highly toxic gases and CFC toxic gases:
      1. Gas cylinders must be kept in a laboratory hood or gas cabinet.
      2. All piping connections must be welded, threaded, or flanged, unless connections are located within an exhausted enclosure.
    3. Process Equipment EnclosuresWhen process equipment enclosures are exhausted, ventilation face velocities at all enclosure holes, cracks, and access ports that may need to be opened in a gas emergency must be 0.5 m/s (100 fpm) or greater. Where emergency access is needed, small (not large) access doors must be used to reduce exhaust requirements.
    4. Purge Vents and Exhaust Lines.
      1. All lines or ducts carrying purged or exhausted emissions of health-hazard gases must be connected to an approved exhaust system.
      2. Corrosive gas venting: Significant emissions from corrosive gas venting may require the use of an emissions control device (e.g., scrubber) to prevent duct corrosion before the purged gas can be vented into the exhaust duct system.
    5. Ventilation Monitoring and Interlocks
      1. CFC Highly Toxic and Toxic Gases. A ventilation monitor with audible and visual alarms is required on the lab hood or gas cabinet where the gas cylinder is kept.
      2. Ventilation monitoring interlocked with automatic gas shutdown may be used in addition to or in place of audible and visual ventilation monitor alarms. In addition, automatic gas shutdown is required based on the gas’s physiological warning properties, as shown in Table 13.3. Ventilation monitoring interlocked with automatic gas shutdown is also recommended for CFC Highly Toxic gases.
  6. Accident Release Evaluation and Control
    1. Gas release controls must be implemented to reduce Highly Toxic and Toxic gas exhaust stack discharge concentrations to 50 % of the IDLH levels (or less) at the point of discharge into the atmosphere.
    2. Highly toxic and toxic gases procured on Berkeley Lab’s eBuy system from Praxair are delivered with a 0.010 inch RFO on cylinders larger than a lecture bottle (lecture bottles will not accept RFOs).
    3. If the resulting toxic or highly toxic gas concentration at the stack is less than or equal to 50 % of the IDLH, the combination of ventilation and an RFO satisfies the control requirements. However, depending on the gas system and/or location, additional engineering controls may be required. For example, in semiconductor fabrications, additional controls will be required, including but not limited to gas cabinets with gas panels, excess flow, automatic shutoff valves, toxic gas monitoring systems, etc.  Contact the Gas Safety program SME for assistance.
    4. If an experimental system requires greater gas flows than a cylinder with an 0.010 inch RFO provides, the RFO may be replaced with a larger RFO, but only after a hazard analysis has been performed and the EHS SME agrees that the changes will not result in a gas exposure at the exhaust stack that is greater than 50% of the IDLH.
    5. For lecture bottles or other cylinder that cannot accept an RFO, calculate the stack discharge.
      1. If stack discharge is less than or equal to 50% of the IDLH, ventilation alone is generally enough to satisfy control requirements (additional controls described above may still apply for specific types of systems and/or locations).
      2. If stack discharge is greater than 50 % IDLH, other engineering controls are necessary (e.g. provide an engineered gas flow shutoff system) to reduce the discharge concentration to less than 50% IDLH. More information is provided in Appendix D or contact the Gas Safety program SME for additional assistance.
      3. If use of an RFO and/or ventilation does not satisfy the control requirements and the toxic or highly toxic gas concentration at the stack exceeds 50% of the IDLH, additional administrative controls would also be required. For example: while toxic gases are flowing and exhausted via the local exhaust ventilation system, no personnel will be permitted to work on the roof, and access will be controlled using a lock and key. This would be in addition to other added engineering controls (e.g. engineered gas flow shutoff system).
    6. When the worst-case catastrophic release of a hazard gas is analyzed and controls evaluated, the catastrophic-gas release rate is calculated using the 5-minute and 30-minute release criteria, depending on whether the gas is non-liquefied (5 minutes) or liquefied (30 minutes).

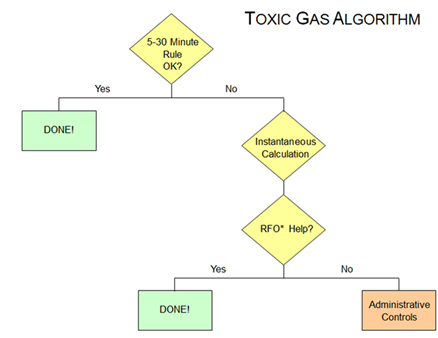

    7. The following decision tree diagrams the graded approach in calculating the worst-case release for Toxic and Highly Toxic gases.

  1. Gas Detection.
    1. The need for health-hazard gas detection must be based on the following criteria: gas concentration, quantity, and physiological warning properties.
    2. Poor physiological warning conditions exist when the concentration and warning properties of the gas are at or above the Ceiling Limit or STEL (or the TWA if no Ceiling Limit or STEL is available) as determined by the EHS Research Support Team. Physiological Warning Property Ratings for health hazard gases are provided in Table 13.3 below.
    3. In general, gas detection for the area of use or storage is required when the quantity of health-hazard gases exceeds the maximum allowable quantity (MAQ). Health-hazard gas detection is always required under the following conditions:
      1. Use of highly toxic gases when exceeding a total of 40 cf (the MAQ) in an LBNL fire control area equipped with fire sprinklers.
      2. Use of toxic gases with poor physiological warning properties when exceeding a total of 1620 cf (the MAQ) in an LBNL fire control area equipped with fire sprinklers.
    4. Gas detection and/or other controls such as leak detection with automatic shutdown or specific ventilation requirements may be required under other conditions. Contact the Gas Safety Program SME or the Fire Marshal’s Office at extension 4861 to review your specific application.
    5. When gas-detection methods are required, use Appendix A to determine gas-detection system maintenance, audit, responsibility, selection, and installation requirements.

Table 13.3 Physiological Warning Property Ratings for Select Health-Hazard Gases
Source: AIHA Odor Thresholds for Chemicals with Established Occupational Health Standards



Dimethylamine (U)

nitrosyl chloride (A)

1,3-butadiene (G*)

ethylene oxide (p*)

 oxygen difluoride (P)

ammonia (G*)

fluorine (M*)

perchloryl fluoride (U)

arsenic pentafluoride (U*)

 germane (U*)

perfluoroisobutylene (U)

arsine (P*)

germanium tetrafluoride (U)

 phosgene (P*)

boron trichloride (A*)

hexafluoroacetone (P*)

 phosphine (P*)

boron trifluoride (P*)

hydrogen bromide (A*)

 phosphorous pentafluoride (A*)

bromine chloride (U)

hydrogen cyanide (P*)

 phosphorous trichloride (P*)

bromine pentafluoride (P)

hydrogen fluoride (A*)

 phosphorous trifluoride (P*)

bromine trifluoride (P)

hydrogen selenide (P*)

 selenium hexafluoride (P)

carbon monoxide (P*)

hydrogen sulfide (M*)

 silane (M*)

carbonyl fluoride (U*)

hydrogen telluride (U)

 silicon tetrachloride (A*)

carbonyl sulfide (U)

 iodine pentafluoride (U)

 silicon tetrafluoride (A*)

chlorine (A*)

methylamine (G*)

 stibine (P*)

chlorine pentafluoride (U)

methyl bromide (P*)

 sulfur dioxide (G*)





 sulfur tetrafluoride (P*)

chlorine trifluoride (M*)

methyl chloride (M)

 sulfuryl fluoride (P)

cyanogen (P)

methyl silane (U)

tellurium hexafluoride (P)

cyanogen chloride (P)

 nickel carbonyl (P)

trimethylamine (G*)

diazomethane (U)

 nitric oxide (G*)

trifluoroacetyl chloride (U)

diborane (P*)

nitrogen dioxide (A*)

tungsten hexafluoride (A*)

dichlorosilane (A*)

nitrogen trifluoride (p*)

vinyl chloride (P*)

(A) Adequate: Warning properties are fairly well understood and occur at or below the lowest PEL or TLV. Data uncertainties may exist.
(E1) Exception 1: A ventilation monitor must be installed, but may not need to be interlocked with gas shutdown if procedures for the operation require: (1) an operator to be present at all times while the gas cylinder valve is open, and (2) the gas cylinder valve to be closed if the ventilation alarm is activated. Exceptions must be approved by the EHSS Research Support Team.
(E2) Exception 2: If no gas-detection system is available, control measures that provide an equal level of safety must be used.
(G) Good: Warning properties are well understood and occur at or below the lowest PEL or TLV.
(M) Marginal: Warning properties are marginally adequate and are most likely to occur at or below the STEL (or TWA, if no STEL or Ceiling Limit is available). Data uncertainties may exist.
(P) Poor: Warning properties occur at or above the STEL or Ceiling Limit (or TWA, if no STEL or Ceiling Limit is available). Many data uncertainties may exist. Gas may have high-hazard toxicity properties.
(U) Undetermined: Information on warning properties is lacking. EHSS will evaluate on a case-by-case basis
(*) Available gas-detection system(s) have been identified.
(—) No general requirement.
_____________________

13.8 Source Requirements

13.9 Reference Documents

Document Number

PUB-3000 Reference

Title

Type

07.01.002.000

Chapter 1

General Policy and Responsibilities

Program

07.07.013.000

Chapter 4

Exposure Assessment

Program

07.07.026.000

Chapter 7

Pressure Safety

Program

07.11.001.000 Chapter 12 Fire Prevention and Protection Program
07.04.001.000 Chapter 24 EH&S Training Program
07.07.009.001

Chapter 29

Safe Handling of Cryogenic Liquids

Program

07.07.005.000

Chapter 45

Chemical Hygiene and Safety Plan

Program

Non-LBNL References

13.10 Appendices

Appendix A. Gas-Detection System Requirements

This appendix contains requirements for maintenance, selection, and installation of gas-detection systems. Explanations for when gas detection is required are presented in Work Process A, General Requirements; Work Process B, Flammable Gases; and Work Process D, Corrosive and Health-Hazard Gases.

  1. Detection System Maintenance
    1. General Maintenance Requirements
      1. The principal investigator or gas-use supervisor is primarily responsible for the management of gas-detection system maintenance related to their project or operation.
      2. Maintenance must at a minimum follow manufacturer’s recommendations, including frequency of maintenance. If applicable, testing of the detection system’s ability to detect and transmit a signal to the Fire Department must follow NFPA guidelines, or must occur on at least a quarterly basis. The Facilities Department will provide technical guidance, if requested.
    2. Maintenance Personnel
      1. The principal investigator may assign maintenance tasks to qualified subordinates, the Facilities Department, or contractors.
      2. Personnel conducting detector maintenance must be adequately trained, have detector manufacturer recommended training or equivalent, and be certified as “qualified” maintenance personnel.
    3. Maintenance Documentation
      1. A formal system of documentation will be maintained for each gas-detection system, and will include:
        1. Manufacturer’s operation and service manuals
        2. Preventive maintenance procedures, post-maintenance testing, schedules, and records of results
        3. Procedures and records for verifying proper connection of detector alarms and interlocks
        4. Records of all repairs, calibrations, non-routine maintenance, and system failures
        5. Names and qualifications of maintenance personnel
        6. Calibration source documentation
      2. A one-year summary (e.g., log) of function checks and maintenance actions performed must be visibly maintained on or near the detector system. Minimum summary information must include the date, person’s name, and action taken.
  2. Detection System Selection
    1. Listing. To ensure that a detection system meets requirements, it must be:
      1. Listed by Underwriters Laboratory or Factory Mutual, or
      2. Listed by the Canadian Safety Association and the California State Fire Marshal’s office, or equivalent.
      3. Note: if only unlisted equipment is available, the Protective Services Fire Marshal may approve unlisted equipment upon evaluation.
    2. Performance. The gas detector sensor must be able to detect gas below the lowest Permissible Exposure Limit (PEL) or Threshold Limit Value (TLV) for health hazard gases and/or at or below 10–15% of the Lower Explosive Limit (LEL) level for flammable gases.
    3. Hardware. System hardware must include:
      1. Separate relays for “warning” (low-concentration gas detection), “alarm” (high-concentration gas detection), and “trouble” (malfunction) conditions, and normally open and normally closed dry-contact-relay output capability for specified but adjustable levels of gas detection
      2. Capability system that is installed as fixed-in-place, with hard-wired and plumbed connections
      3. Control protection from direct unauthorized personnel access
  3. Detection System Installations
    1. Design. Detection system installations will be designed and documented (i.e., plans and as-built drawings) by the Facilities Department. A Facilities Department licensed professional engineer and Protective Services Fire Protection SME must approve all designs prior to contract award or installation. In addition, an EHS SME must approve all toxic and oxygen-deficiency-detection system designs.
    2. Alarm Signal Transmission Options. Detection system alarms must be used under one of the following scenarios:
      1. Set up for a local alarm only. This is the minimum allowed and provides for evacuation of the space(s) that may be affected during a gas release.
      2. Set up for a local alarm and for detection via a Facilities maintained monitoring system. This will trigger a response by Facilities personnel as well as providing the local alarm.
      3. Setup for a local alarm, a Facilities maintained monitoring system, and connection to the fire alarm system. This will trigger a Fire Department response as well as a Facilities response and a local alarm.
      4. Setup for a local alarm and connection to the fire alarm system. This will trigger a local alarm and a Fire Department response. This could be used in older buildings where a Facilities monitoring system is not capable of supporting gas detection.
    3. Connection to a fire alarm system must be reviewed by a Protective Services Fire Protection SME, and generally requires a system that is listed and approved for connection. Specific alarm trigger points are discussed below.
    4. Sample Point Locations. Gas-detector sample points must be placed immediately adjacent to potential leak points or in the flow path of exhausted enclosures.
    5. Alarm Locations. All gas-detection systems must have:
      1. Audible and visual alarms in the following locations: gas-supply location, gas-use or operator room, and outside the gas-use room (e.g., corridor).
      2. An alarm status and gas-concentration readout panel must be located outside the gas-use room.
      3. Local audible and visual alarms must be specific and distinct from fire alarm bells and have signs to indicate the alarm’s meaning and required personnel action.
    6. Alarm Conditions and Actions.
      1. Alarm conditions must consist of “trouble,” “warning,” and “alarm.”
      2. Toxic-gas “warning” and “alarm” level set-points must normally be set at less-than-PEL/TLV and equal-to-PEL/TLV concentrations, respectively.
      3. Flammable-gas warning and alarm level set-points must normally be set at 10–15% LEL and 20% LEL, respectively.
      4. Low-level “warnings” must activate local alarms and personnel response only.
      5. High-level “alarms” must activate local-area evacuation, automatic gas shutdown at the gas source, and Fire Department notification.
    7. Power and Control
      1. The detection and alarm systems will be connected to emergency power. In the event of a power failure, the detection system must continue to operate without interruption (e.g., must have an uninterruptable power supply), or gas systems must be automatically shut down at the gas source.
      2. Power connections, control switches, and adjustments that affect the system’s safety control must be protected from direct access (e.g., must be hard-wired or covered and locked).
  4. Gas System Inspections/Audits. Gas detection systems will be reviewed annually at a minimum by the system owner, the Activity Lead, and the Gas Program SME. The annual review can take place during a WPC activity review or during another specifically scheduled time. Review of calibration records and maintenance logs will be included as part of the annual inspection.

Appendix B. Specific Health-Hazard Gas Classifications

The following table compiles useful facts for the most commonly used gases at LBNL that pose a health hazard gas. The sources for this information are:

CAS No. /UN No.:               Safety Data Sheet
NFPA Health Classification:  NFPA 55, Compressed Gas and Cryogen Fluids Code
IDLH and LC50:                 National Institute of Occupational Safety and Health, Pocket Guide to Chemical Hazards, DHHS (NIOSH), Pub. No. 90-117
PEL/ TLV:                        American Conference of Governmental Industrial Hygienists, Threshold Limit Values for Chemical Substances and Physical Agents (current version)

Known Potential Incompatibilities: gas providers’ compatibility charts:

Advanced Specialty Gas
Air Liquide Specialty Gases
Scott Specialty Gases

Gas Name  (Symbol)

CAS No./ UN No.

NFPA Health Class

Uniform Fire Code Hazard Classes

IDLH (ppm)

LC50 (ppm)

PEL/TLV (ppm)

Known Potential Incompatibilities*

ammonia (NH3)

7664-41-7 UN 1005

3

C, F(LG)

300

7338

50/25

Brass, Zn, Cu, Kynar®, polycarbonate,polyurethane,Viton®, Kalrez®

arsenic pentafluoride (AsF5)

7784-36-3

4

T(H), C, CAR, WR(1)

NL

1276 (HF)

0.5 / 2 (Ceiling) (HF)

NL

arsine (AsH3)

7784-42-1 UN2188

4

T(H), F, F(LG)

3

178

0.05/0.005

Al, polyurethane

boron trichloride (BCl3)

10294-34-5 UN1741

3

T, C, WR(1)

NL

2541

2 (Ceiling) (HCl)/ 5 (Ceiling) (HCl)

brass, aluminum, Kalrez®

boron trifluoride (BF3)

7637-07-2 UN1008

3

T, C, WR(1)

NL

864

1 (Ceiling)

Kalrez®

bromine chloride (BrCl)

13863-41-7

4

T(H), C, O(G)

3 (bromine)

290

0.1 (bromine)

NL

bromine pentafluoride (BrF5)

7789-30-2

3

T, C, WR(3), O(3)

NL

50

0.1

NL

bromine trifluoride (BrF3)

7787-71-5

4

T(H), C, WR(3), O

3 (bromine)

180

0.1 (bromine)

NL

1,3-butadiene (C4H6)

106-99-0

4

F, CAR, UR(2), I

2000

220,000

1, 5 (STEL)/2

Polycarbonate, polyurethane, Buna-N

carbon monoxide (CO)

630-08-0 UN1016

2

F(G)

1200

3760

50/25

NL

carbonyl fluoride (COF2)

353-50-4

3

T, I, WR(1)

NL

360

2, 5 (STEL)

NL

carbonyl sulfide (COS)

463-58-1

3

T, C, F(LG), OHH

100 (H2S)

1700

1, 5 (STEL) (H2S)

NL

chlorine (Cl2)

7782-50-5 UN1017

3

T, C, O(LG)

10

293

1 (Ceiling)/ 0.5, 1 (STEL)

brass, Al, Zn, Cu, PVC, polycarbonate,  Buna-N, Neoprene, polyurethane

chlorine pentafluoride (ClF5)

13637-63-3

4

T(H), C, O(G), WR

10 (Cl)

122

0.5, 1 (STEL) (Cl)

NL

chlorine trifluoride (ClF3)

7790-91-2 UN1749

4

T(H),C,O(LG),UR(3D),WR(2)

NL

299

0.1 (Ceiling)

NL

cyanogen (C2N2)

460-19-5

4

T(H), C, F(G)

NL

350

10

NL

cyanogen chloride (ClCN)

506-77-4

4

T(H), I, UR(2), WR(1)

NL

80

0.3 (Ceiling)

NL

diazomethane (CH2N2)

334-88-3

3

T, F(G)

2

NL

0.2

NL

diborane (H6B2)

19287-45-7 UN1911

4

T(H), P, I, UR(3D), WR(1)

15

80

0.1

Aluminum

dichlorosilane (SiH2Cl2)

4109-96-0 UN2189

3

C, F(LG), WR(1)

NL

3124

2 (Ceiling) (HCl)

NL

Dimethylamine (C2H5)2NH

124-40-3

3

T, F(LG)

200

NL

10/5, 15 (STEL)

NL

ethylene oxide (C2H4O)

75-21-8 UN1040

3

T, F(LG)

800

2920

1

Aluminum, tin

fluorine (F2)

7782-41-4 UN1045

4

T(H), C, WR(2), O(G)

25

185

0.1/ 1, 2 (STEL)

NL

germanium tetrafluoride (GeF4)

7783-58-6

3

T, C

NL

NL

3 (HF)/ 0.5, 2 (Ceiling) (HF)

NL

germanium tetrahydride (GeH4)

7782-65-2 UN2192

4

T(H), I, F(G), UR(3D)

NL

622

0.2

NL

Hexafluoroacetone (C3F6O)

684-16-2

4

T (H), C, WR

NL

470

0.1

NL

hydrogen bromide (HBr)

10035-10-6 UN1048

2

I

30

2858

3/ 2 (Ceiling)

NL

hydrogen chloride (HCl)

7647-01-0 UN1050

3

C

NL

3124

5 (Ceiling) / 2 (Ceiling)

brass, Al, Zn, Cu, PVC, polycarbonate,  Buna-N, Neoprene, polyurethane

hydrogen cyanide (HCN)

74-90-8 UN1051

4

T(H), F(LG), UR(2), WR(1)

50

140

10/ 4.7 (Ceiling) (Skin)

NL

hydrogen fluoride (HF)

7664-39-3 UN1052

3

T, C, WR(2)

30

1276

3/ 0.5, 2 (Ceiling)

NL

hydrogen selenide (H2Se)

7783-07-5 UN2202

4

T(H), F(LG), I

1

51

0.05

NL

hydrogen sulfide (H2S)

7783-06-4 UN1053

3

T, I, F(LG)

100

712

20 (Ceiling)/ 1, 5 (STEL)

Brass, Viton®

hydrogen telluride (H2Te)

7783-09-7

3

T, F(LG), C

NL

2

NL

NL

iodine pentafluoride (IP5)

7783-66-6

NL

T, C, O WR

NL

120

0.01, 0.1 (STEL) (I2)

NL

methylamine (CH3NH2)

74-89-5

3

T, F(G)

100

NL

10/ 5, 15 (STEL)

Cu, Zn alloys, Al, galvanized surfaces

methyl bromide  (CH3Br)

74-83-9 UN1062

3

T, C, F(LG)

250

850

20 (Ceiling)/ 1 (Skin)

NL

methyl chloride (CH3Cl)

74-87-3

2

F(LG), WR(1), I

2000

8300

100,200 (Ceiling) / 50, 100 (STEL)

Al, Zn, Buna-N, Neoprene, polyurethane

methyl mercaptan CH3SH

74-93-1 UN1064

3

T F (LG)

150

1350

10 (Ceiling)/ 0.5

NL

methyl silane (SiH3CH3)

992-94-9

3

T, PY, WR, UR

NL

>5000

5 (silane)

NL

nickel carbonyl Ni(CO)4

13463-39-3 UN1259

4

T(H),I,F,UR(3D),WR(1), Liquid

2

20

0.001/ 0.05

NL

nitric oxide (NO)

10102-43-9 UN1660

3

T, I, O(LG)

100

115

25

brass

nitrogen dioxide (NO2)

10102-44-0 UN1067

4

T(H), C, O(LG), WR(1)

20

115

5 (Ceiling)/ 3, 5 (STEL)

PVC, Viton®, Buna-N, Neoprene, polyurethane

nitrogen trifluoride (NF3)

7783-54-2

3

I, O(G), OHH

1000

6700

10

NL

nitrosyl chloride (NOCl)

2696-92-6

NL

T, C, WR

NL

35

2 (Ceiling) (HCl)

NL

oxygen difluoride (OF2)

7783-41-7

NL

T(H), WR, C, UR, O

NL

2.6

0.05/ 0.05 (Ceiling)

NL

perchloryl fluoride (ClO3F)

7616-94-6

4

T(H), O(G)

100

770

3/ 3, 6 (STEL)

NL

Perfluoroisobutylene (C4F8)

382-21-8

4

T(H)

NL

NL

0.01 (Ceiling)

NL

phosgene (COCl2)

75-44-5 UN1076

4

T, I, WR(1)

2

5

0.1

NL

phosphine (PH3)

7803-51-2 UN2199

4

T(H), P

50

20

0.3/ 0.3, 1 (STEL)

NL

phosphorous pentafluoride (PF5)

7647-19-0 UN2198

3

T, C, WR(1), WR(1)

NL

261

3 (HF)/ 0.5, 2 (STEL) (HF)

NL

phosphorous trichloride (PCl3)

7719-12-2 UN1809

3

T, P, C, UR(2), WR(2), Liquid

25

NL

0.5/ 0.2, 0.5 (STEL)

NL

phosphorous trifluoride (PF3)

7783-55-3

3

T, I, WR(1)

NL

436

3 (HF)/ 0.5, 2 (STEL) (HF)

NL

selenium hexafluoride (SeF6)

7783-79-1 UN2194

NL

T, C

2

50

0.05 (as Se)

NL

silane (silicontetrahydride-SiH4)

7803-62-5

2

P, UR(1)

NL

19,000

5

NL

silicon tetrachloride (SiCl4)

10026-04-7 UN1818

3

C, WR(1), Liquid

NL

750

5 (Ceiling) (HCl)/ 2 (Ceiling) (HCl)

Al, PVC, Kalrez®

silicon tetrafluoride (SiF4)

7783-61-1 UN1859

3

T

NL

922

3 (HF)/ 0.5, 2 (STEL) (HF)

Kalrez®

stibine (SbH3)

7803-52-3 UN2676

4

T(H), F(G)

NL

20

0.1

NL

sulfur dioxide (SO2)

7446-09-5 UN1079

2

I

100

2520

5/ 0.25 (STEL)

Brass, Zn, Cu, polycarbonate, Buna-N, Neoprene, polyurethane

sulfur tetrafluoride (SF4)

7783-60-0

4

T(H), C, UR(2), WR(1)

NL

40

0.1

NL

sulfuryl fluoride (SO2F2)

2699-79-8 UN2191

3

T, I

200

3020

5/ 5, 10 (STEL)

NL

tellurium hexafluoride (TeF6)

7783-80-4 UN2195

NL

T, C, WR. UR

1

NL

0.02

NL

trifluoroacetyl chloride (C2ClF3O)

354-32-5

3

T, C, WR

NL

208

NL

NL

Trimethylamine (C3H9N)

75-50-3

3

T, F(G)

NL

2000

5, 15 (STEL)

NL

tungsten hexafluoride (WF6)

7783-82-6 UN2196

3

T, C, WR(2)

NL

218

3 (HF)/ 0.5, 2 (STEL) (HF)

NL

vinyl chloride (C2H3Cl)

75-01-4

4

T, I, F(LG), UR(1), CAR

NL

>5000

1

NL

Abbreviations:
CAR - Carcinogen
C - Corrosive
F - Flammable: Gas (G), Liquefied Gas (LG)
I - Irritant
NL - Not Listed
O - Oxidizer: Gas (G); Liquefied Gas (LG); Classes (1), (2), (3), and (4)
OHH - Other Health Hazard
T - Toxic: Highly (H)
UR - Unstable Reactive: Classes (1), (2), (3), Detonatable (3D), and (4)
WR - Water Reactive: Classes (1), (2), (3), and (4)
IDLH - Immediately Dangerous to Life and Health
*- Air Liquide America Specialty Gases LLC/ Gas Encyclopedia

Appendix C. Gas System Component Information

Source: EHS Course 0171 (Excerpt)

Tubing and Fittings
When gas leaves the regulator, it needs to be conveyed somewhere or to something in order for it to be used. Tubing and fittings convey the gas without leakage. Tubing is used as the conveyance path, and fittings connect pieces of tubing to each other and to other components (for example, the regulator).

Tubing
Tubing can be flexible (Tygon, rubber, Teflon, Polyflow, etc.) or metallic (copper, stainless steel, steel). In a conveyance system the tubing generally determines the pressure rating unless some other component, for example a gauge, flow meter or piece of apparatus, has a lower pressure rating. Tubing can usually be selected at the convenience of the user with the following guidelines:

Fittings
Fittings should be selected based on the type(s) of gas in use and the pressures of the system.  For some applications involving toxic or flammable gases (e.g. higher pressures, spark or open flame nearby), use of some types of fittings may be in violation of fire codes.  For further guidance contact Protective Services at x4861.

There are several types of fittings used at LBNL A few common types are listed and discussed here.

Tapered (Pipe) Fitting



A tapered or pipe fitting can be recognized because it has a 1 to 16 width to length taper as shown above. As the male fitting is inserted into the female fitting, the small end of the male taper enters the wide end of the female fitting, and the fit is somewhat loose. As the fitting is tightened, the diameters become closer until eventually they match.

In a pipe fitting, the pressure of the system seals on the threads (this is not necessarily the case on other type of fittings). When assembling a tapered fitting, it is necessary to put a lubricant onto the threads for two purposes:

The most common thread seal is Teflon tape. Two turns of this tape are applied to the male fitting which is then screwed into the female fitting. It must be renewed each time the fitting is unscrewed. A tapered fitting is the ONLY type of fitting in which Teflon tape is used.

There are two standards of tapered fitting in use at LBNL. Fractional inch size fittings generally use the NPT (National Pipe Thread) standard. They may also be seen as MPT (male pipe thread), FPT (female pipe thread), NPTM (National Pipe Thread - male), or some other variation. There is another tapered fitting standard known as the ISO (International Standards Organization) taper. Where confusion can occur is that these two standards, NPT and ISO, use the same 1:16 taper, but the thread angle and shape are different. So, for example, NPT male will thread into an ISO female because the tapers match, but they won't seal because the threads don't match profile.

If the tubing size is designated in the inch system, and it's not designated as ISO profile, it is probably a National Pipe Thread.

Hose (Barbed) Fitting



Hose fittings, also known as barbed fittings, are used for flexible tubing. They are designed to have a flexible tubing (say rubber or Tygon) pressed over the end, and the sharp ridges of the fitting grab the inside of the tubing and keep it from leaving the fitting. Here you see a hose adapter with a male pipe thread on one end. This could be used to connect flexible tubing to a female pipe fitting, such as a regulator body. (Note: the term "tubing" is generally used to describe a system conveying gases, while "hose" generally describes a system conveying liquids. But even for gas use these are still referred to as "hose fittings".)

Barbed fittings are excellent fittings as long as the application of the flexible tubing is proper. Most flexible tubing is combustible. It cannot be used for conveying gas that would pose a hazard in a fire. Only non-hazardous gases can be conveyed in combustible flexible tubing.

If a user wishes to get additional flow through a system, the typical but not necessarily proper way to do so is to turn up the pressure at the regulator. On a system using flexible tubing, this can result in the tubing popping off because the tubing expands with increase pressure. This is a clue that the system is overloaded. Rather than to put a clamp on the fitting, the fitting and tubing should be replaced with a larger size. This "no clamp" rule does NOT apply to water running through hoses. Many of LBNL's cooling water systems have valved barb fittings that connect to equipment cooling water hoses. These connections SHOULD be clamped to be sure that the hoses do not come off the fittings and leak water all over the laboratory.

Swage (Compression) Fitting
One of the most common type of fittings used at LBNL for connecting metallic tubing is the swage-type fitting, often referred to as "Swagelok" after the original patent holder. That patent is long expired, and there are several excellent manufacturers of swage-type or compression fittings. At LBNL we have used both Swagelok and Gyrolok brands.

Swagelok Fitting



A swage-type fitting consists of four parts: the body, the nut, and a two-piece ferrule. All parts must be present for the fitting to operate properly. The pressure sealing surface on a swage-type fitting is the taper between the front ferrule and the body.

Swagelok Fitting

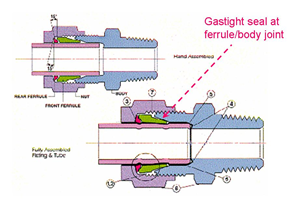

When a swage-type fitting is first assembled the nut is hand-tightened onto the body, then a wrench is used to further tighten the nut to a certain torque or number of revolutions. This causes the back ferrule to push against and drive under the front ferrule, and the front ferrule to push against and drive under the body. As they drive forward the two ferrule pieces tip and force their tips into the tubing. This locks the ferrules to the tubing. At the same time, the ferrules tip to match the taper of the inside of the body, forming the gas-tight seal. Properly installed ferrules should rotate around the tubing when the tubing is removed from the body, but it should not be possible to remove the ferrules.

There are several considerations to keep in mind regarding swage-type fittings:

•  They must be assembled according to the manufacturer's instructions. These are available on each manufacturer's web site or from the sales representatives. These are engineered systems and must be properly assembled to work properly.
•  Each time the fitting is disassembled and reassembled, the tubing moves across the tapered portion of the body. This may cause scratches in the body sealing surface.
•  The ferrule rotates and may not end up in the original location from initial assembly.
•  Swage-type fittings are not designed to be disassembled and reassembled multiple times. They are guaranteed for the first assembly only.
•  If a swage-type fitting leaks, the only way to repair it is to cut the tubing and install new ferrules. There may not be sufficient flexibility in the system to accommodate this.

The basic principle of the swaging process is that the ferrule deforms the tubing. The ferrule must be harder than the tubing or else this deformation will not occur. Ferrules come in three basic materials: plastic, brass and stainless steel. There is no problem with having a ferrule of a different material from the body (which comes in brass or stainless steel), but it must be selected on the basis of the hardness of the tubing.

Regardless of material type, all components of a fitting (nut, body, ferrules) MUST be from the same manufacturer. To avoid confusion, a research group should decide upon a single manufacturer and stick with that manufacturer for all fittings to avoid inadvertent mixing of components.

Face Seal Fitting

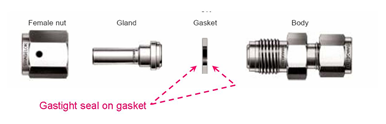

A face seal fitting uses a sacrificial gasket to form the gastight seal. When this fitting is assembled a new gasket is placed between the gland and the body and the two are tightened. When the joint is disassembled and then reassembled, a new gasket is used. The gasket deforms to the microscopic characteristics of each face and stays that way as long as the joint is tight. Face seal fittings have a very high integrity. They are used for high vacuum applications, pressure systems where even small leaks are critical (for example, toxic gas distribution systems), and for joints that must be disassembled and reassembled. Unlike the swage-type fitting, if a face seal fitting leaks it is repairable, just unscrew it and replace the gasket.

Face Seal Fitting



Here one of the many configurations available is shown. The gland (left) is a tubing that can either be welded to other tubing, or else applied to a swage-type fitting after the nut has been installed. The body (right) has a swage-type body for direct connection to tubing. Many sizes and configurations are available.

Other Fitting Types
The "RL" (Rad Lab) fitting was developed at LBNL in the early 1950's as a vacuum fitting. Although not formally rated as a pressure fitting like other face seal fittings (for example, the "VCO" fitting manufactured by Swagelok), RL fittings can be safely used to 100 psig without problems.

There are also other compression, flare and gasket-type fittings used for tubing. They are in relatively minor use at LBNL. If you have any questions about other fitting types, contact EH&S. In particular, it is possible to purchase "compression" plumbing fittings at a conventional hardware store that will fit the same tubing as gas-pressure rated swage fittings. These fittings are acceptable for installing water to ice makers and toilets, but are not acceptable for gas use. Use gas-rated fittings specifically intended for that purpose.

Regulator Selection




Regulators provide two safety benefits to a pressure system: flow control and pressure control. Every pressure source must have a regulator attached to it during use unless the pressure is inherently limited to less than the pressure rating of the weakest component. In some cases building utilities supplied through bench valves such as air, nitrogen or natural gas might need a regulator inside the laboratory.

There are a number of options available for choosing a regulator, including:

Regulator Safety Manifold
A Regulator Safety Manifold consists of a regulator, safety relief and vent valves. LBNL Facilities Division can provide assistance with assembling and installing different types of gas, cryogen or other fluid delivery systems as well as setting up the Regulator Safety Manifold.



Many pressure systems are very sensitive to the addition of any atmospheric oxygen or water vapor. Whenever a gas cylinder is changed, a small amount of air gets into the regulator, and if not properly bled off, this air can contaminate the system.

Single and Double Stage Regulators

Single Stage Regulators
Single stage regulators have one needle valve and orifice pressure drop stage. These regulators are typically used for applications where the supply is relatively close to the delivery pressure (for example, liquefied gases such as ammonia, chlorine, and propane have relatively low supply pressure and use single stage regulators, as do high pressure gases requiring regulation to pressures greater than half of the supply pressure). They are also often used for high flow applications. The large round object connected to the natural gas meter at a residence is a single stage pressure regulator for the natural gas that is fed to the house.

Single stage regulators do have some limitations:

Single Stage Regulator     Double Stage Regulator


Double Stage Regulators
To get around the limitations of a single stage regulator, double stage regulators should be used whenever feasible. In this design, there are two pressure drop stages in series. The first stage drops the pressure to an intermediate pressure (shown above as the green), and then a second, user-adjustable stage drops to the final delivery pressure. If there is a failure in either stage, then there is at least partial control of pressure, enhancing the safety of the installation.

Single Stage Regulator     Double Stage Regulator


Single stage and double stage regulators can be easily differentiated by looking at them in the axis of the diaphragm as show above. A single stage regulator is asymmetrical since it has only one spring chamber, while a double stage regulator is symmetrical because it has two spring chambers (for the two pressure reduction stages).

Regulator Materials of Construction
There are a number of choices available for regulator materials. The body material can be specified by user, but the internals are typically dictated by the gas to be controlled. For most applications, brass provides an excellent and economical body choice, although many researchers specify stainless steel for high purity applications. The more exotic alloys are reserved for severe applications and are very expensive. Brass body regulators are typically in the $200-300 range, stainless steel may be twice to three times that amount.  Exotic alloys are orders of magnitude more expensive than brass. Below are some examples:

Other Regulator Selection Criteria

Inlet Pressure
The inlet pressure to a regulator is determined by what it is connected to - a gas cylinder, a distribution pipe, a compressor, or other source. The anticipated inlet pressure influences the manufacturer's choice of internal parts.

Outlet Pressure
Outlet pressure range is critical because regulators operate most efficiently when they are operated towards the middle of their output  pressure range. Normal operating pressure should be 25-75% of the full scale of the output pressure gauge. There is more involved in setting a regulator's outlet pressure than just changing the gauge - the use pressure also influences the stiffness of the internal components such as springs, diaphragm, etc.

Flow Range
The required flow range will influence the size of the internal passages in the regulator as well as the characteristics of the needle valve/seat assembly. Choose from what is available - generally higher flow capability results in less precise pressure control.

Fittings

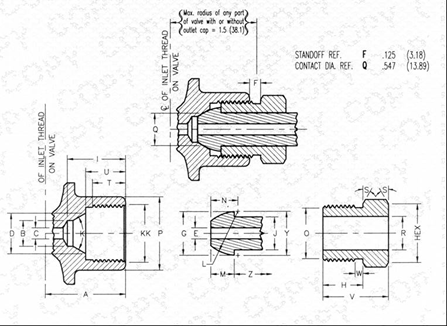

The Compressed Gas Association prescribes fitting geometry to preclude accidentally assembling an incompatible system.  The medical industry, in particular, is very particular about anything but oxygen being connected to a patient oxygen delivery system. In order to maintain safety, CGA has developed standards for over 110 different fittings, with the idea that interchanging gases within a fitting will not cause a safety problem.



Inert gases such as nitrogen, helium and argon in typical 200-250 cubic foot cylinders all share the CGA-580 fitting shown above. There may be a valid scientific reason to not mix these gases, but from a pressure safety standpoint they are compatible and share the same fitting. Other types of CGA fittings can be found at the web link below:

Advanced Specialty Gases

When a regulator is ordered the user must specify the fitting that is installed. In many cases the same regulator can be used for multiple gases by changing the inlet fitting. The user must NOT change the inlet fitting, this must be done by someone who has been trained to work on the regulator. When a change in use is anticipated the regulator is evaluated for suitability for the new gas, and this includes examining the internal parts to be sure that they are compatible with the anticipated new use.

Outlet fittings on general purpose regulators are generally 1/4" NPTF unless otherwise specified at the time of ordering .

Regulators for Flammable Gases

Normally, to install a regulator onto a cylinder, the regulator fitting is turned clockwise to screw it onto the cylinder valve - this can be thought of as "clockwise to close" or "righten to tighten", and these are called right hand threads. Flammable gases such as hydrogen, methane, propane, acetylene, and flammable gas blends use reverse or left hand threads. These operate the opposite direction: they turn counterclockwise to install onto the cylinder valve. This is to make it absolutely impossible to ever connect a flammable gas cylinder to a system that is not intended to have a flammable gas. No matter how hard you turn it or how big a wrench you use, you will never thread a right hand thread regulator onto a left hand thread cylinder. Or the other way around.

    Left Hand threads            Right Hand threads
(Flammable gases)           (all gases EXCEPT flammables)



Left hand thread fittings are identified by hash marks on the crowns of the hexagonal fitting. The photograph on the left shows a hydrogen regulator fitting, which happens to use a female nut on the regulator side of the fitting. Note the hash marks (short grooves) on the crowns of the nut. Other flammable gas fittings that use a male on the regulator side and thread to a female cylinder valve (for example, that for propane) also have hash marks on the crown of the hexagonal fitting.

This convention sometimes, but not always, extends downstream of the regulator depending upon application. For example, the hoses and torches used in welding apparatus have left hand threads for the acetylene feed and right hand threads for the oxygen feed. However, except for welding, in laboratories and shops this specificity is typically removed at the outlet side of the regulator, which is why it is important for all gas lines to be properly labelled.

Regulators for Oxygen
Regulators used for oxygen have a special consideration: fire. The fire triangle shown here signifies that three things are necessary for combustion: fuel, oxygen (from air), and an initiation energy (heat is one form of initiation energy). In the case of high pressure, high purity oxygen, the initiation energy required is very low. The energy liberated by oxygen changing direction within a regulator can provide sufficient energy to initiate a fire if a fuel source is present. In regulators, unless the lubricant is hydrocarbon-free, the regulator can explode.



A regulator that has been previously used for another high pressure application (for example, nitrogen or compressed air) may be easily converted to use for oxygen. However, the conversion must be performed by a trained technician, and must include thorough cleaning of the regulator to remove hydrocarbon lubricant and changing the inlet fitting. New regulators come "oxygen ready", they are shipped with non-hydrocarbon lubricant. If a regulator has always been used for oxygen applications with no troubles, there is generally no need for periodic cleaning and re-lubrication.

Appendix D. Additional Information: Mixed Gases, Toxic Gases

  1. All indoor storage or use of "toxic" and "highly toxic" gases must be in ventilated enclosures. The type of ventilated enclosure that must be provided for gases in use is as follows (1,2):
    1. CFC "toxic" gases: for quantities less than or equal to 1,620 cubic feet per fire control area at NTP, gas cylinders may be placed inside either a fume hood or ventilated gas cabinet. For quantities greater than 1,620 cubic feet per fire control area, only ventilated gas cabinets are allowed. (Note: a standard full size cylinder is approximately 220 cubic feet at STP).
    2. CFC "highly toxic" gases: for quantities less than or equal to 40 cubic feet per fire control area at NTP, the gas cylinder(s)  may be placed inside either a fume hood or ventilated gas cabinet. For quantities greater than 40 cubic feet per fire control area, only ventilated gas cabinets are allowed.
    3. Mixtures or dilutions of "toxic" or "highly toxic" gases: Either a fume hood or a ventilated gas cabinet is required when:
      1. The hypothetical instantaneous release and mixing of the entire cylinder contents would create a room atmosphere where the room air concentration of the gas is greater than the Immediately Dangerous to Life and Health (IDLH) level (3); or
      2. The hypothetical catastrophic release of an entire cylinder of gas (5 minutes for pressurized gases, 30 minutes for liquefied gases), when diluted by the room ventilation, would result in a room air gas concentration greater than the IDLH level (3); or
      3. The gas has poor odor warning properties, and either of the above scenarios results in room air concentrations greater than the ceiling exposure limit or short term exposure limit, whichever is greater (4).

(1) These interpretations assume that the location is "B" occupancy with fire sprinklers or other suppression system. This is the most common laboratory and shop classification at LBNL. The alternative classification is "H" occupancy. There are very few "H" occupancy locations at LBNL.

(2) The quantities differ slightly for gases in storage as opposed to gases in use. However, by far the most common application at LBNL is the use of gases. Users with questions about storage quantities should contact Protective Services Fire Protection at x6160.

(3) See Calculation Procedures for Release Analysis at the end of this section

(4) Ceiling and short term exposure limits are defined by the American Conference of Governmental Hygienists. If neither a ceiling nor a short term exposure limit are listed, then the reference value is three times the permissible exposure limit. Poor odor warning properties means that the gas cannot be smelled at the Permissible Exposure Limit. Odor warning properties are listed in Appendix B.

  1. In some situations, installation of restricted flow orifices may not sufficiently reduce stack discharge concentrations to meet the stack discharge concentration requirements (for example, the required flow rate may be below the process utilization requirement, or a restricted flow orifice is not available for the flow rate required). In these cases, safety can be provided by providing an engineered gas flow shutoff system that assures that the catastrophic leak condition does not occur during the gas leak emergency.
    1. In order to utilize this alternative, the inability to install a restricted flow orifice to sufficiently reduce gas flow in the event of a gas leak emergency must be documented in the Work Planning and Control (WPC) Activity for that installation.
    2. The gas flow shutoff system utilized for meeting this alternative must include the following features (1):
      1. An excess flow sensor sized to activate at the next available flow rate greater than the process flow of the system;
      2. A normally-closed shutoff valve that is permitted open by a signal from a control panel;
      3. A control panel that closes the shutoff valve upon receipt of any of the following signals:
        • Excess gas flow
        • Ventilation system failure
        • Building Fire/Evacuation Alarm activation
        • Building power failure
        • Emergency "Panic" button
      4. A Commissioning/Test Procedure included in the WPC Activity for the installation. All functions of the shutoff system must be tested per the Commissioning/Test Procedure upon installation and at least annually thereafter. The shutoff valve should also be tested annually by activating the Panic button. Results of all tests should be recorded.
      5. Note: Users are encouraged to provide the gas flow shutoff system as outlined above as an additional safety measure in the system even if it is not required under this interpretation.
  2. All installed cylinders must be secured to the structure of the fume hood or gas cabinet so that cylinders do not move independently of the regulator, manifold and other connections. Bottle stands alone are not sufficient to secure a cylinder against movement; the stands themselves must also be secured.
  3. Gas cabinets and fume hoods must be secured to the building structure sufficient to withstand an earthquake (see RPM, Seismic Safety, for additional details).
  4. Questions on this interpretation, or assistance in evaluating a particular application, may be addressed to Kurt Ettinger at x2016.

(1) The Gas Safety program already requires an audible and visual ventilation failure alarm. To provide the signal necessary to trigger the control panel, the alarm may be equipped with contacts or a separate sensor such as a Photohelic gauge may be used.

Calculation Procedures for Release Analysis

  1. Instantaneous release into a room:
    1. Determine room volume as floor area (length x width) x ceiling height. Floor area can be obtained from Facilities information or by direct measurement. Do not subtract for room contents such as cabinets, benches, experimental apparatus, etc.
    2. Determine the total volume of gas that can be released, at room temperature and pressure. For compressed gases, use P1V1=P2V2 where
  1. Catastrophic release into a room:

Determine the amount of air Q that is being actively exhausted from the room via fume hoods, room ventilation, etc. Precise measurement can be performed by Facilities, however an approximate minimum for laboratories is room volume (see 1a above) divided by six, with results expressed in cubic feet per minute.

    1. Determine the total volume of gas that can be released V2 (see 1b above).
    2. Determine the gas release rate per minute G. This is obtained by dividing the total volume of gas to be released V2 (result 2b above) by the assumed time t over which the cylinder will discharge.
      1. For compressed gases, assume t=5 minutes.
      2. For liquefied gases, assume t=30 minutes.
    3. Calculate the maximum room concentration that will be reached by using Cmax=(GK/Q) x 106 where

      Cmax = maximum concentration that will be reached, in parts per million volume
      G = gas release rate (from 2c above)
      K = 8, a constant that allows for incomplete room mixing
      106 converts from a pure decimal to the units parts per million

Fire Code Hazard Classification of Gas Mixtures (Fluorine Example)
This Information is based upon the current California Fire Code (CFC) and California Building Code (CBC) definitions of hazardous materials as stated in Chapter 2 of both Codes, and in Appendix E of the CFC. Other hazards normally associated with mixtures of toxic and inert gases, such as worker exposures, are beyond the scope and intent of this section.

  1. Background.
    1. The CFC and CBC provide limits on the quantities of hazardous materials that may be stored and used in buildings, based upon the hazards associated with those materials.
    2. When hazardous materials are present in 100% concentration (i.e., “pure”), their hazard classes can be determined from the chemical’s Safety Data Sheet, or other open source data. When a hazardous material is a component of a mixture, the hazard classification requires determination through a process of calculating the constituents’ percentage makeup of the mixture.
    3. Mixtures of fluorine and inert gases are commonly used at LBNL in Excimer lasers. Generally, these laser gases use low concentrations of fluorine (typically <2%), and are typically used in cylinders containing 200 scf or less.
  2. Code Analysis.
    Definitions for “Toxic” and “Highly Toxic” applicable to compressed gases are:
    1. Toxic Material is a material which produces a lethal dose or a lethal concentration within any of the following categories:
      1. “A chemical or substance that has a median lethal concentration (LC50) in air of more than 200 parts per million but not more than 2,000 parts per million by volume of gas or vapor, … when administered by continuous inhalation for one hour, or less if death occurs within one hour, to albino rates weighing between 200 and 300 grams each.”
    2.  “Highly Toxic Material is a material which produces a lethal dose or a lethal concentration which falls within any of the following categories:
      1. A chemical that has a median lethal concentration (LC50) in air of 200 parts per million by volume or less of gas or vapor, … when administered by continuous inhalation for one hour, or less if death occurs within one hour, to albino rates weighing between 200 and 300 grams each.”
    3. The definition for “HIGHLY TOXIC MATERIAL” goes on to specifically address mixtures: “Mixtures of these materials with ordinary materials, such as water, might not warrant classification as highly toxic. While this system is basically simple in application, any hazard evaluation which is required for the categorization of this type of material shall be performed by experienced, technically competent persons.”
  3. Fluorine example: The primary hazard attributable to mixtures of fluorine and an inert gas is toxicity. Classification of potentially toxic mixtures is addressed in Compressed Gas Association Pamphlet P-20 “Standard for Classification of Toxic Gas Mixtures”. This document provides that when one-hour LC50 values are known, the LC50 value of the mixture is the molar volume weighted proportion of the LC50 values of each toxic component. For example, the LC50 value of a mixture containing 20% fluorine and 80% nitrogen is given by:

      LC50 of pure fluorine = 185 ppm
      LC50 of nitrogen = N/A (not toxic, acts by asphyxiation)
      Fluorine content = 20% (fractionally, 0.20)
      Calculated LC50 of a 20% F2/80%N2 mixture is therefore:
      LC50 (mix) = (185/0.20) = 925 ppm

  4. Classification of Fluorine Gas Mixtures per CFC/CBC
    1. Highly Toxic – the LC50 (mix) trigger level specified in CFC/CBC for “Highly Toxic” is 200 ppm.

      185/fht = 200
      fht  = 0.925

      Conclusion: mixtures containing fluorine concentrations of 92.5% or greater, with the balance containing an inert gas, are classified as “Highly Toxic”.

    2. Toxic – the LC50 (mix) trigger levels specified in CFC/CBC are 2000 ppm and 200 ppm. The concentration of 92.5% that results in LC50 (mix) of 200 ppm is shown above.

Engineering Summary and Guidance

  1. Given the manner of calculating the potential toxicity of mixtures involving fluorine as demonstrated above, mixtures of fluorine and inert gases shall be classified at LBNL in accordance with the CFC/CBC as follows:
    1. Mixtures with a fluorine content greater than 92.5% - “Highly Toxic”
    2. Mixtures with a fluorine content 9.25%-92.5% inclusive – “Toxic”
    3. Mixtures with a fluorine content less than 9.25% - Asphyxiant
    4. As most Excimer laser gases have a fluorine content of 5% or less, they can be classified as an asphyxiant hazard rather than a toxicological hazard.
  2. Fire protection measures applicable to these typical Excimer laser gases are limited to the requirements for any typical compressed gas, and are not required to address the toxic properties of fluorine. All exhausted enclosures using Excimer laser gases will require labeling and exhaust flow in accordance with CFC and CBC guidelines, all applicable NFPA Codes and Standards, and DOE Orders and Standards.
  3. Any compressed gases using fluorine or other toxic chemicals at limits that require a “toxic” or “highly toxic” classification are required to comply with all Codes and Standards applicable to the chemical and its classification. These may include strict limits on the quantities allowed in labs or other areas within LBNL or off site leased facilities.
  4. Contact the Protective Services Fire Marshal’s Office with any questions.





_____________________

<< Chapter 12 || Table of Contents || Chapter 15 >>
